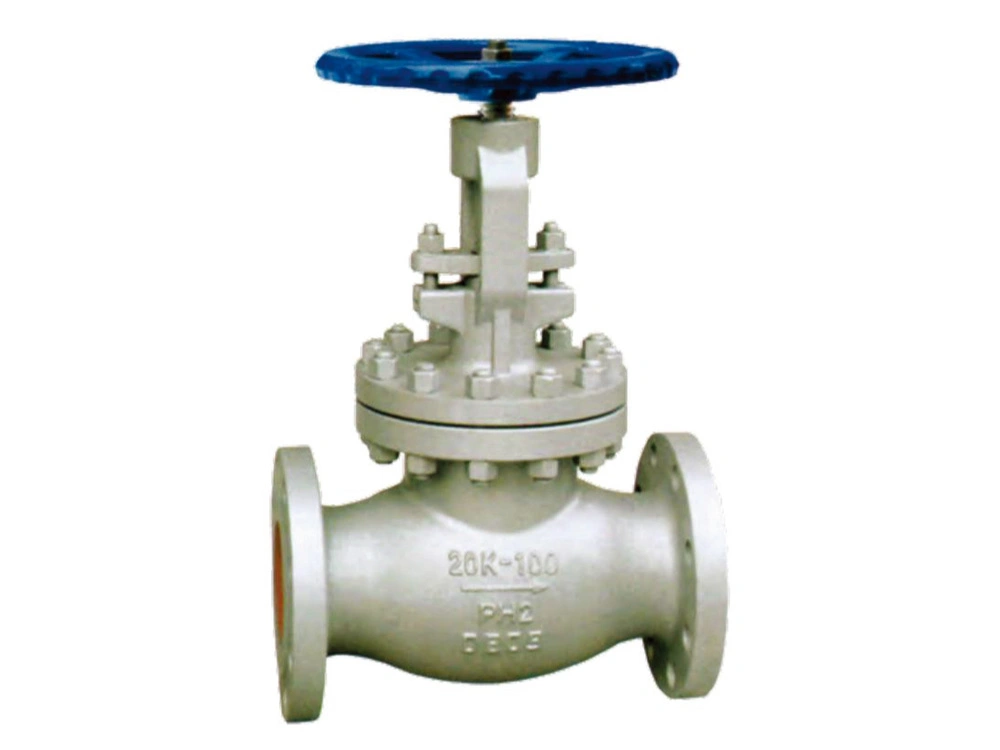

JIS Stainless Steel Globe Valve, 10K/20K (Flanged Globe Valve)
- Nominal Diameter: DN50-DN200
- Materials: 316, CF8M, 1.4408, WCB, 304, CF8, etc.
- Design & Manufacture: BS 5351
- Flange End: JIS B1212 82214
- Inspection & Testing: JIS B 2003
- Surface Treatment: Pickling, Passivation, Polishing (or as per customer request)
Applications
JIS stainless steel globe valves are used in water, steam, and oil pipelines with operating temperatures up to 150°C, mainly to start, stop, or adjust media flow in systems that require 10K or 20K flanged connections.
Applicable Standards
| Design & Manufacture | Face to face | Flange End | Pressure-Temperature | Inspection & Testing |
| JIS B2071 B2081 | JIS B2002 | JIS B2212 B2214 | JIS B2071 B2081 | JIS B2003 |
Capability Criterion
| Body Material | SCPH2-11 | SCPH-32 | SCS13A | SCS19A | SCS14A | SCS16A | SCPL1 |
| Suitable Temperature | ≤425℃ | ≤540℃ | ≤275℃ | ≤200°℃ | ≤275℃ | ≤200℃ | -45 to 150℃ |
| Suitable Media | Water, Steam, Oil | Nitric Acia | Acetic Acid | Ammonia Gas, Liquid Ammonia | |||

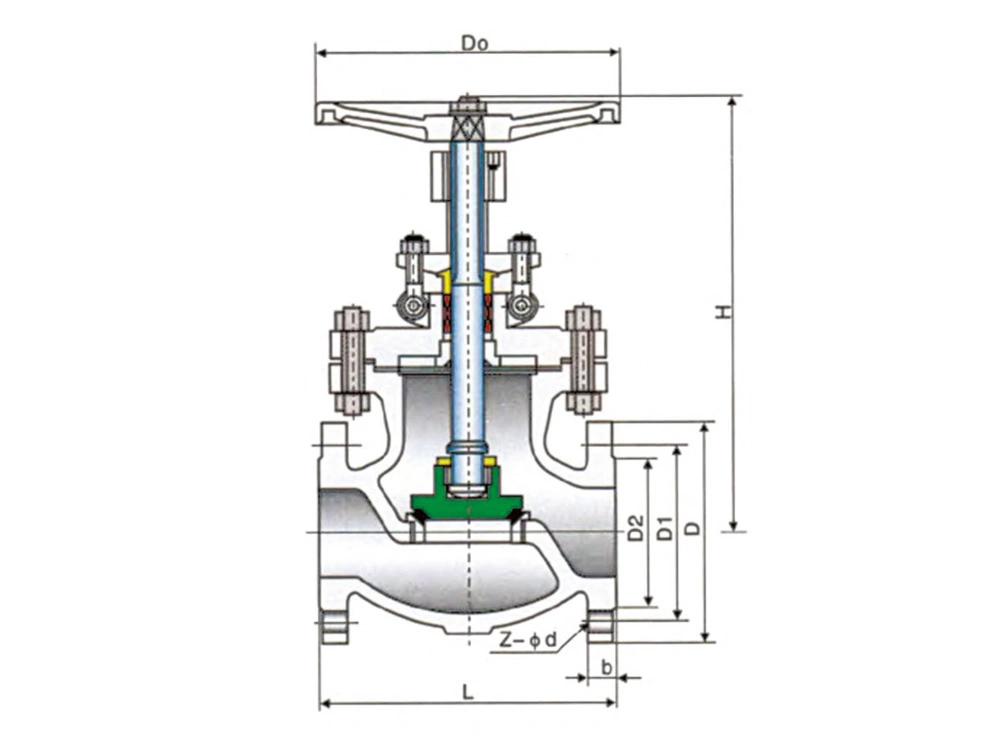

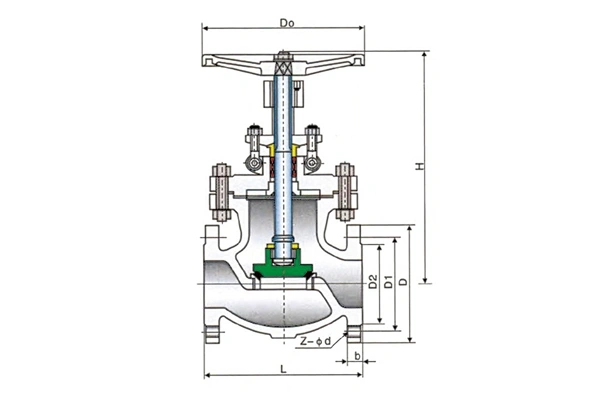

Dimensions
| DN | Bolted Bonnet Rising Stem Globe Valve JIS 10K | ||||||||
| mm | in | L | D | D1 | D2 | b | n-Ød | H | Do |
| 50 | 2" | 203 | 155 | 120 | 96 | 16 | 4-Ø19 | 317 | 200 |
| 65 | 2 1/2" | 216 | 175 | 140 | 120 | 18 | 4-Ø19 | 380 | 200 |
| 80 | 3" | 241 | 185 | 150 | 130 | 18 | 8-Ø19 | 415 | 250 |
| 100 | 4" | 292 | 210 | 175 | 126 | 18 | 8-Ø19 | 465 | 250 |
| 125 | 5" | 356 | 250 | 210 | 185 | 20 | 8-Ø23 | 405 | 300 |
| 150 | 6" | 406 | 280 | 240 | 215 | 22 | 8-Ø23 | 535 | 350 |
| 200 | 8" | 495 | 330 | 290 | 265 | 22 | 12-Ø23 | 675 | 450 |
