Model: NQ

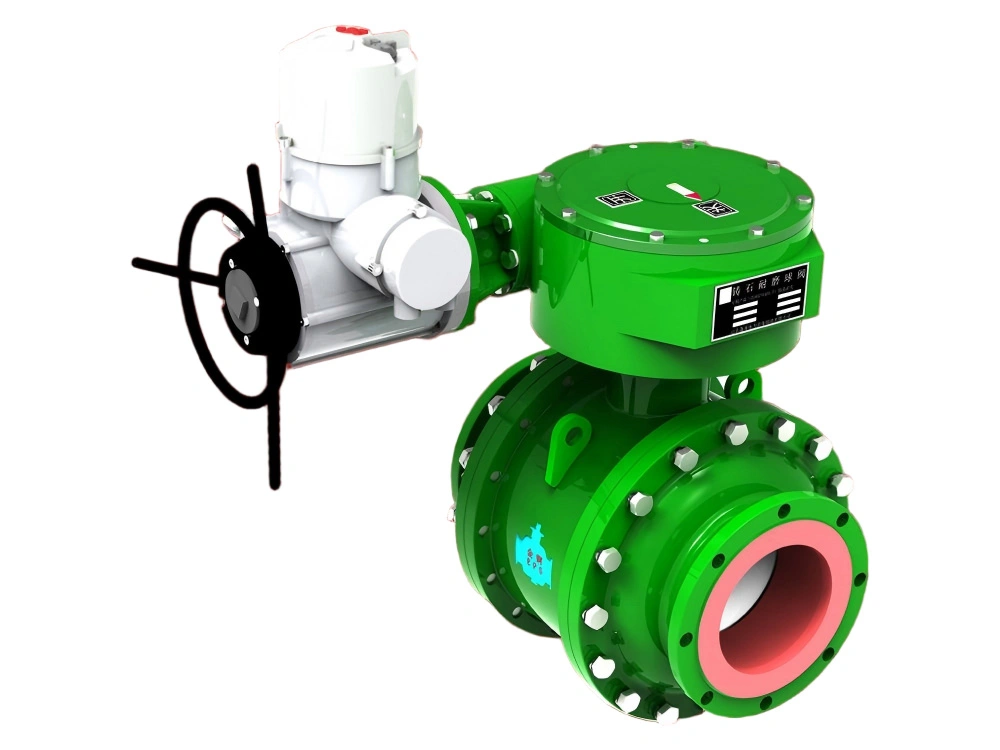

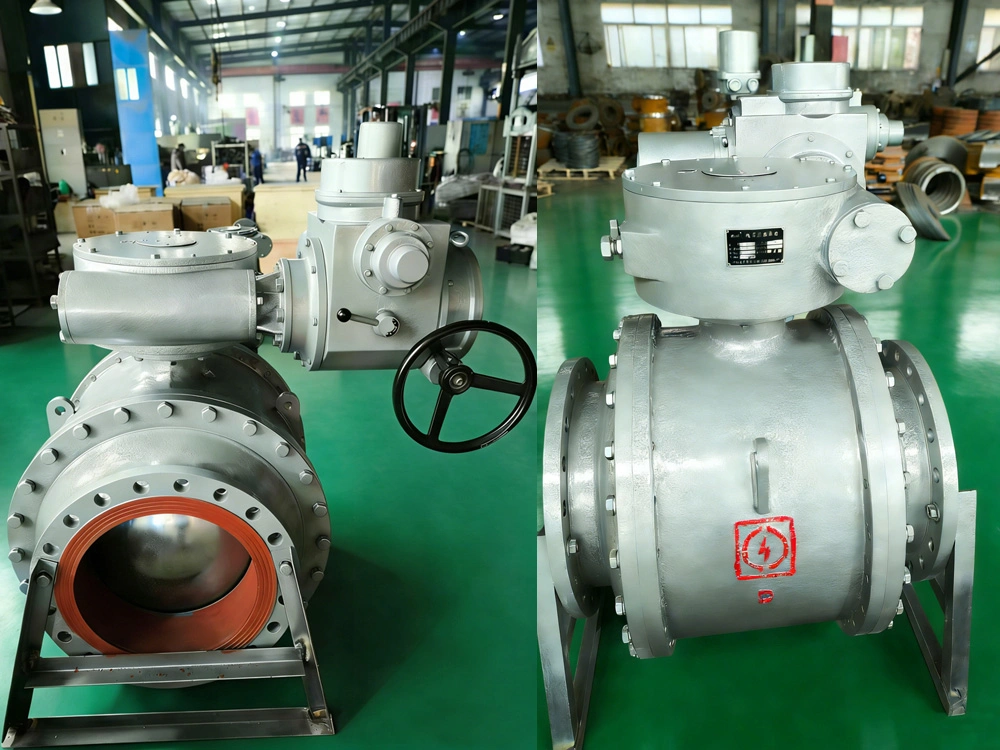

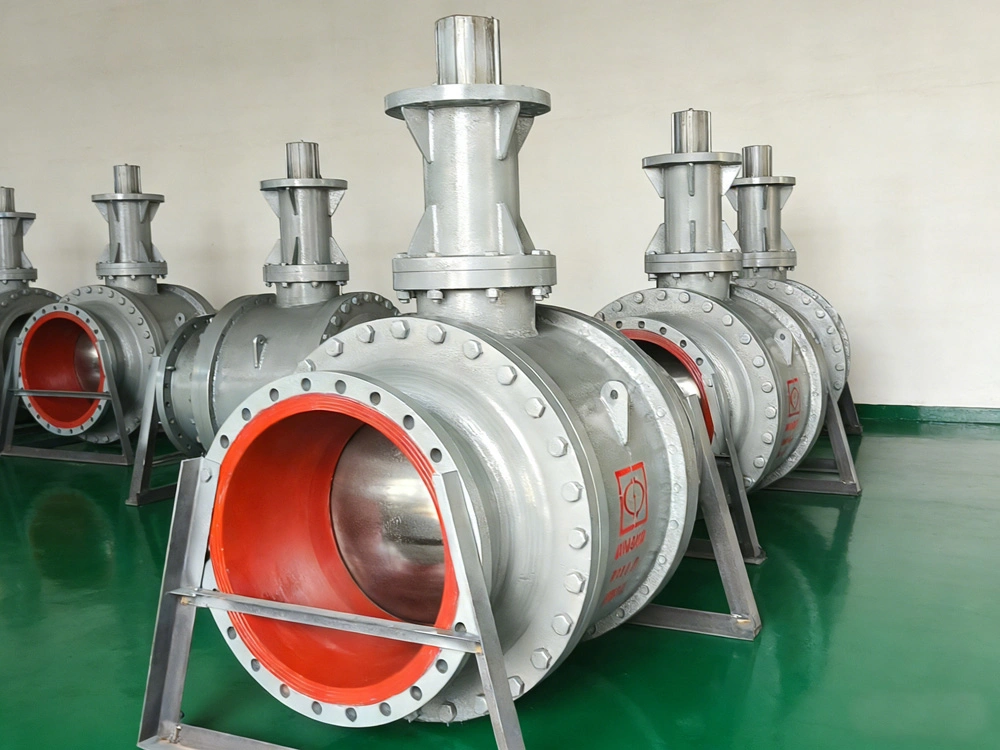

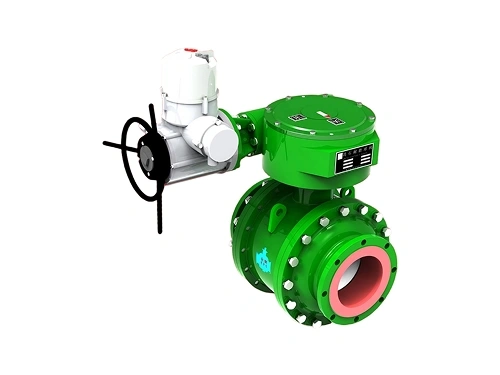

Cast Basalt Wear-Resisting Ball Valve (Large Diameter Fused Cast Basalt Lined Valve, 80-1200 mm)

• Nominal Diameter: DN 80-DN1200
• Pressure Rating: PN1.0-PN20.0 MPa
• Flange End: GB/T 9124, ANSI B16.5
• Suitable Media: Slurry
• Operating Temperature: -40 to 120℃
• Method of Operation: Manual, Electric, Pneumatic, Hydraulic
• Inspection & Testing: GB/T 13927, API 598
• Surface Treatment: Painted

The cast basalt wear-resisting ball valve is built for slurry handling systems and other severe wear applications where conventional valves are prone to rapid abrasion and leakage problems. Combining advanced ball valve design with our patented sealing technology, the valve integrates fused cast basalt lining materials known for their strong wear and acid resistance. It minimizes wear and tear caused by abrasive materials and improve durability in high pressure environments. The valve also maintains stable shut-off performance during long-term operation. The valve is widely used in mining, ash handling, tailings transport, and other heavy-duty conveying systems where reducing wear, minimizing downtime, and extending equipment service life are critical. When the cast basalt wear-resistant components are not installed, the valve can also function as a standard industrial ball valve.

• Ash handling and slag discharge systems in thermal power plants
  Designed to handle continuous wear caused by abrasive ash and slag transport, helping maintain stable system operation under demanding working conditions.
• Mine tailings discharge systems
  Suitable for transporting tailings slurry and other solid-liquid mixtures with high particle concentration and strong abrasive characteristics.
• Mine backfill systems
  Provides reliable sealing and wear resistance during slurry conveying in backfill operations, helping reduce equipment wear and maintenance frequency.

• Excellent wear resistance
  The fused cast basalt lining and optimized internal structure help the valve withstand continuous abrasion from high-wear slurry media, extending service life in demanding operating environments.
• Extended operating life
  The valve can achieve a service life more than 30 times longer than conventional valves, helping reduce replacement frequency, maintenance workload, and long-term operating costs.

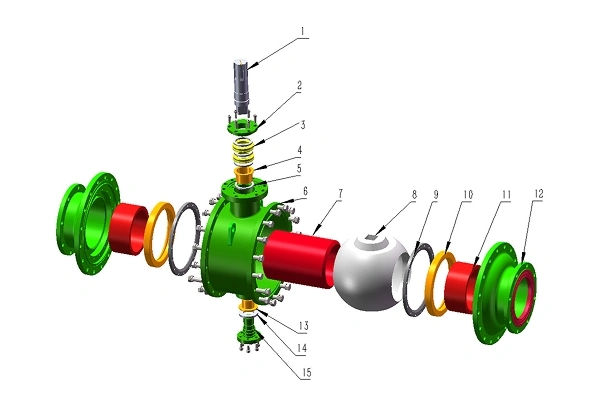

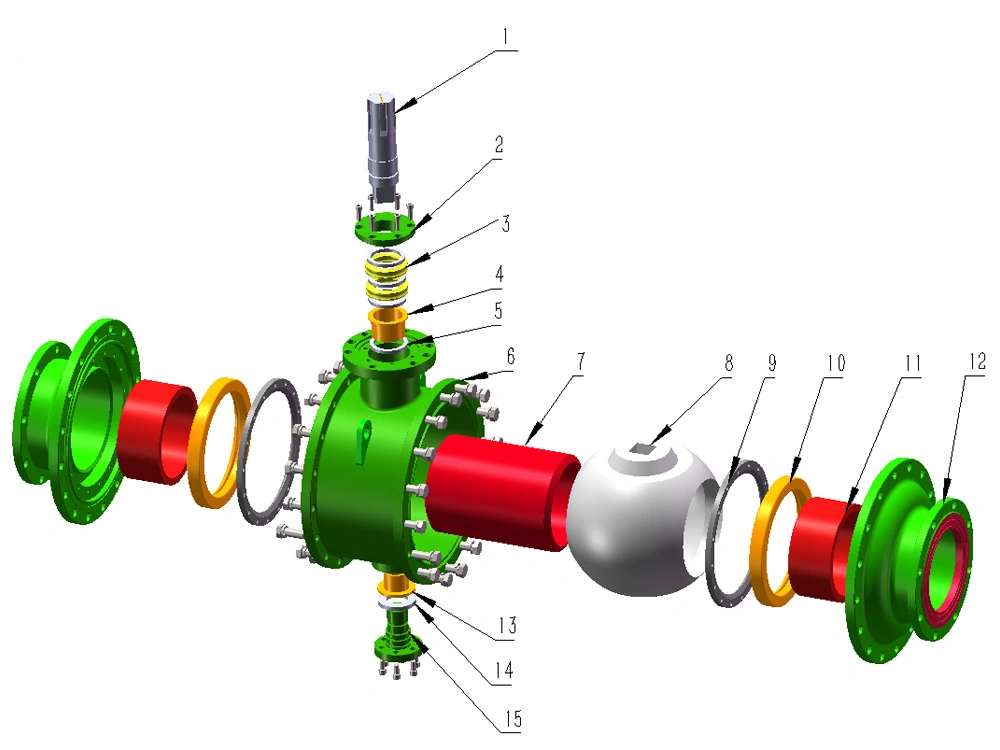

No.	Component	Material	Quantity
1	Upper Stem	40Cr	1
2	Stem Seal Gland	WCB	1
3	Stem Seal Ring	PU	2
4	Upper Stem Bushing	ZCuZn40Pb2	1
5	Upper Adjusting Shim	WCB	1
6	Body	WCB	1
7	Ball Cast Basalt Liner	Cast Stone	1
8	Ball	WCB	1
9	Retaining Ring	Q235	2
10	Gasket	PU	2
11	Bonnet Cast Basalt Liner	Cast Stone	2
12	Bonnet	WCB	2
13	Lower Stem Bushing	ZCuZn40Pb2	1
14	Lower Adjusting Shim	WCB	1
15	Lower Stem	40Cr	1

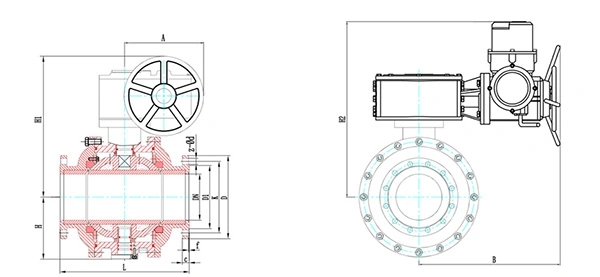

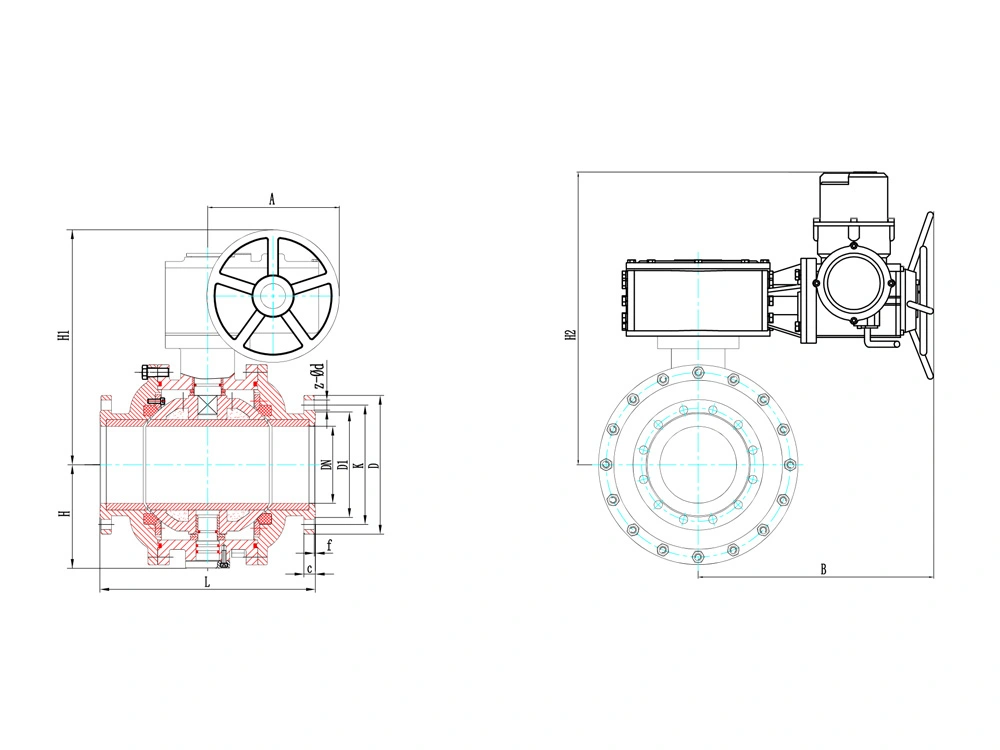

PN1.0MPa

Size		L			H	H1	H2	A	B	D	K	D1	c	f	Z-Ød
		L		S
DN	NPS	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
80	3"	370			150	536	502	300	478	200	160	132	18	3	8-Ø18
100	4"	390		380	150	536	502	300	478	220	180	156	21	3	8-Ø18
125	5"	440			165	551	517	300	478	250	210	184	21	3	8-Ø18
150	6"	500	460		180	658	532	413	478	285	240	211	21	3	8-Ø22
175	7"	540	490		225	698	670	413	616	315	270	240	21	3	8-Ø22
200	8"	560	526		243	716	688	413	616	340	295	266	25	3	8-Ø22
225	9"	610	516		243	729	688	413	616	370	325	295	26	3	8-Ø22
250	10"	620	520		255	824	700	564	616	395	350	319	26	3	12-Ø22
300	12"	690	600		285	854	759	564	685	445	400	370	29	4	12-Ø22
350	14"	764	670		335	1009	811	698	685	505	460	429	29	4	16-Ø22
400	16"	818	740		375	1049	851	698	685	565	515	480	32	4	16-Ø26
450	18"	920	870		433	1176	964	853	855	615	565	530	34	4	20-Ø26
500	20"	950			480	1216	1004	853	855	670	620	582	34	4	20-Ø26
600	24"	1280			628	1401	1712	1150	1625	780	725	682	37	5	20-Ø30
700	28"	1382			693	1466	1777	1150	1625	895	840	794	40	5	24-Ø30

PN1.6MPa

Size		L			H	H1	H2	A	B	D	K	D1	c	f	Z-Ød
		L		S
DN	NPS	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
80	3"	370			150	536	502	300	478	200	160	132	18	3	8-Ø18
100	4"	390		380	150	536	502	300	478	220	180	156	21	3	8-Ø18
125	5"	440			165	551	517	300	478	250	210	184	21	3	8-Ø18
150	6"	500	460		180	658	532	413	478	285	240	211	21	3	8-Ø22
175	7"	540	490		225	698	670	413	616	315	270	240	21	3	8-Ø22
200	8"	560	526		243	716	688	413	616	340	295	266	25	3	12-Ø22
225	9"	610	516		243	729	688	413	616	370	325	295	26	3	12-Ø22
250	10"	620	520		255	824	700	564	616	405	355	319	26	3	12-Ø26
300	12"	690	600		285	854	759	564	685	460	410	370	29	4	12-Ø26
350	14"	764	670		335	1009	811	698	685	520	470	429	29	4	16-Ø26
400	16"	818	740		375	1049	851	698	685	580	525	480	32	4	16-Ø30
450	18"	920	870		433	1176	964	853	855	640	585	548	34	4	20-Ø30
500	20"	950			480	1216	1004	853	855	715	650	609	34	4	20-Ø33
600	24"	1280			628	1401	1712	1150	1625	840	770	720	47	5	20-Ø36
700	28"	1382			693	1466	1777	1150	1625	910	840	794	50	5	24-Ø36

PN2.5MPa

Size		L			H	H1	H2	A	B	D	K	D1	c	f	Z-Ød
		L		S
DN	NPS	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
80	3"	370			150	536	502	300	478	200	160	132	20	3	8-Ø18
100	4"	390		380	150	536	502	300	478	235	190	156	22	3	8-Ø22
125	5"	440			165	551	517	300	478	270	220	184	22	3	8-Ø26
150	6"	500	460		180	658	532	413	478	300	250	211	24	3	8-Ø26
175	7"	540	490		225	698	670	413	616	330	280	248	24	3	12-Ø26
200	8"	560	526		243	716	688	413	616	360	310	274	26	3	12-Ø26
225	9"	610	516		243	729	688	413	616	395	340	302	28	3	12-Ø30
250	10"	620	520		255	824	700	564	616	425	370	330	28	3	12-Ø30
300	12"	690	600		285	854	759	564	685	485	430	389	32	4	16-Ø30
350	14"	764	670		335	1009	811	698	685	555	490	448	35	4	16-Ø33
400	16"	818	740		375	1049	851	698	685	620	550	503	38	4	16-Ø36
450	18"	920	870		433	1176	964	853	855	670	600	548	38	4	20-Ø36
500	20"	950			480	1216	1004	853	855	730	660	609	42	4	20-Ø36
600	24"	1280			628	1401	1712	1150	1625	845	770	720	52	5	20-Ø39
700	28"	1382			693	1466	1777	1150	1625	960	875	820	60	5	24-Ø42

PN4.0MPa

Size		L			H	H1	H2	A	B	D	K	D1	c	f	Z-Ød
		L		S
DN	NPS	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
80	3"	386			150	536	502	300	478	200	160	132	24	3	8-Ø18
100	4"	390			150	536	502	300	478	235	190	156	24	3	8-Ø22
125	5"	470			165	551	517	300	478	270	220	184	26	3	8-Ø26
150	6"	500	470		180	658	532	413	478	300	250	211	28	3	8-Ø26
175	7"	540	520		225	698	670	413	616	350	295	258	28	3	12-Ø30
200	8"	560	542		243	716	688	413	616	375	320	284	33	3	12-Ø30
225	9"	610	546		243	729	688	413	616	420	355	315	33	3	12-Ø33
250	10"	620	586		255	824	700	564	685	450	385	345	33	3	12-Ø33
300	12"	690	650		285	854	759	564	685	515	450	409	39	4	16-Ø33
350	14"	764	710		335	1009	811	698	685	580	510	465	39	4	16-Ø36
500	20"	980			538	1302	1115	987	993	755	670	615	50	4	20-Ø42
600	24"	1350			626	1424	1189	987	993	890	795	735	65	5	20-Ø48

PN6.3MPa

Size		L			H	H1	H2	A	B	D	K	D1	c	f	Z-Ød
		L		S
DN	NPS	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
80	3"	386			150	536	502	300	478	215	170	140	26	3	8-Ø22
100	4"	390			150	536	502	300	478	250	200	168	28	3	8-Ø26
125	5"	470			165	551	517	300	478	295	240	202	28	3	8-Ø30
150	6"	500	470		180	658	532	413	478	345	280	240	30	3	8-Ø33
175	7"	540	520		225	698	670	413	616	375	310	270	30	3	12-Ø33
200	8"	560	542		243	716	688	413	616	415	345	300	35	3	12-Ø36
225	9"	610	546		243	729	688	413	616	440	370	325	35	3	12-Ø36
250	10"	620	586		255	824	700	564	685	470	400	352	38	3	12-Ø36
300	12"	690	650		285	854	759	564	685	530	460	412	42	4	16-Ø36
350	14"	764	710		335	1009	811	698	685	600	525	475	46	4	16-Ø39

PN10.0MPa

Size		L	H	H1	H2	A	B	D	K	D1	Z-Ød
DN	NPS	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
80	3"	400	173	651	617	381	539	230	180	132	8-Ø26
100	4"	450	193	671	637	381	539	265	210	156	8-Ø30
125	5"	500	218	691	667	381	539	315	250	184	8-Ø33
150	6"	540	243	716	745	381	685	355	290	211	12-Ø33
200	8"	610	318	904	809	564	685	430	360	284	12-Ø36
250	10"	690	343	974	913	564	855	505	430	345	12-Ø39
300	12"	760	393	1034	933	644	855	585	500	409	16-Ø42
350	14"	820	443	1070	953	644	855	655	560	465	16-Ø48

Note:
1. Valve drawings shown are for reference only.
2. Product specifications and technical data may change due to design improvements or product updates.
3. Please contact our sales team for the latest information. Custom designs and specifications are available upon request.
