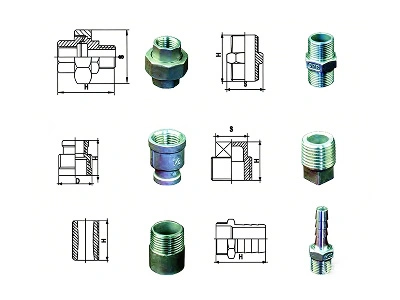

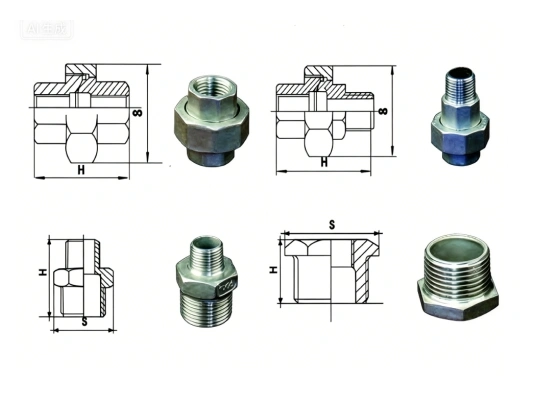

Investment Casting Pipe Fittings

Investment Casting Pipe Fittings
Investment Casting Pipe Fittings
Investment Casting Pipe Fittings
Investment Casting Pipe Fittings
Investment Casting Pipe Fittings

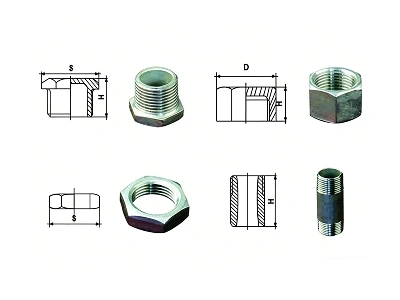

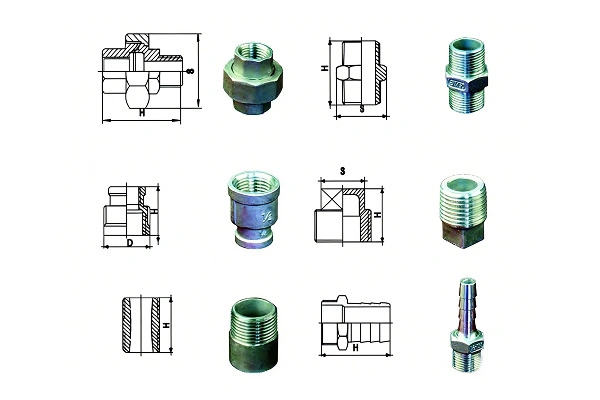

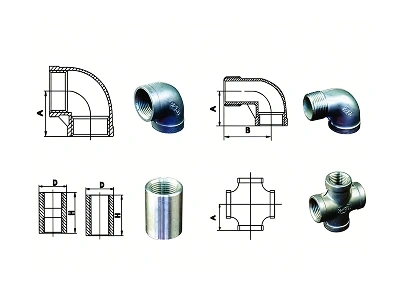

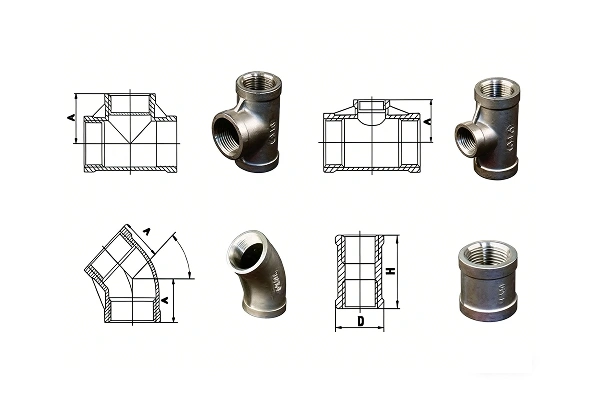

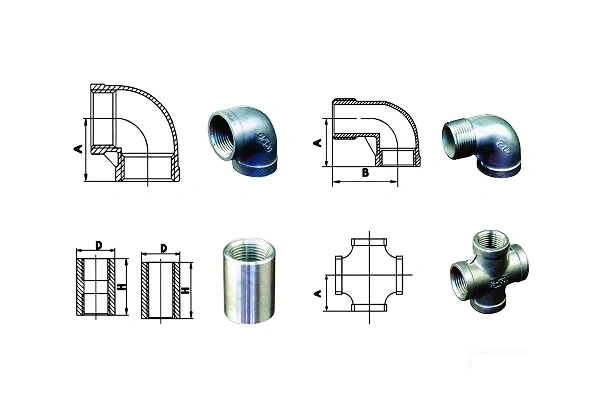

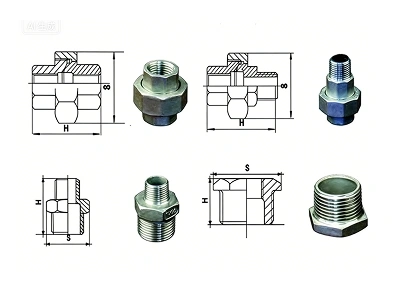

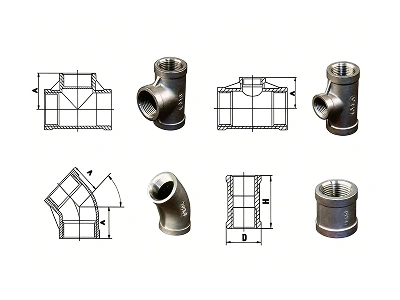

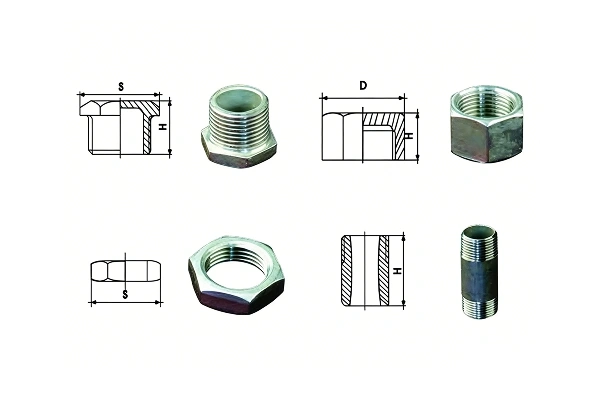

No. 1 2 4 5 6 7/8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
Size A A A B A D H D H D H S H S H s H S H S H s H D H S H S H D H S H H S D H H H
1/8" 18 17 26 19 15.5 27 14.5 23 14.5 11.5 29 32 29 29 17 32 17 32 7.7 17.5 15 7 16 14 17 5.5 14 18 17 40 17 35 12 40 30
1/4" 19 19 30 21 18.4 27 18 27 18 13.5 29 32 29 50.5 29 31 19 34 17 33 17 18 8.5 19 9 19 17 18 8.4 15 18 17 44 19 38 13 40 30
3/8" 23 23 35 23 21.8 30 21.5 29 21.5 14.5 34 34.5 34 55.5 34 31.5 21 36 21 35 21 19 25 19 12 21 21 19 21.8 17 22 18 51 24 41 13 40 30
1/2" 27 27 27 40 25 28 36 26.5 37 26.5 18.5 39 39.5 39 62 39 34.5 26 42 26 38 26 22 28 32 14 25 26 22 28 20 26 20 63 30 45 15 60 35
3/4" 32 32 32 47 30 34 39 32.5 40 32.5 20 47 42 47 68 47 40 31 47 31 42 31 25 34.5 36 17 28 31 25 34 24 33 22 65 38 51 17 60 40
1" 38 38 38 54 32 43 45 40 44 40 22 58 48 58 76.5 58 43.5 38 52 38 48 38 27 43 37 19 31 38 27 48 28 39 25 74 43 57 19 80 40
1 1/4" 46 46 62 33 51 50 49 50 49 25 67 54.5 67 87.5 67 49.5 46 56 46 54 46 30 51 42 23 35 46 30 51 30 49 28 81 52 67 19 80 50
1 1/2" 50 48 68 36 59 50 55 54 55 27 76 58.5 76 96 76 53.5 53 60 63 59 53 32 59 49 26 36 53 32 59 32 55 30 91 60 76 19 80 50
2" 58 57 79 44 72 60 67.5 63 67.5 31.5 90 62.5 90 102 90 57.5 63 66 63 62 63 36 71.5 52 32 42 63 36 72 36 68 34 100 72 88 21 100 50
2 1/2" 70 69 92 50 86 67 84 70 84 35 108 70.5 108 10.5 108 62 80 73 80 71 80 39 41 48 80 39 86 40 83 41 119 90 102 25 100 60
3" 80 78 104 54 101 72 96 76 96 38 122 78.3 122 122 122 67.5 93 81 93 77 93 44 46 53 93 44 10 42 95 45 128 100 18 25 120 70
4" 97 97 126 65 128 80 125 86 125 43 152 92 152 137 152 78.5 119 92 119 87 119 51 58 62 119 51 128 45 121 48 143 126 147 29 150 80
Investment Casting & Valve Manufacturing Since 1987

At SDPLDL, we are a trusted manufacturer specializing in precision investment casting and industrial valves for global markets. We operate our own manufacturing facility featuring over 200 sets of advanced manufacturing equipment and an in-house testing center equipped with 16-ton dynamic balancing machines. Our integrated manufacturing capabilities allow us to seamlessly produce precision investment casting valves, custom stainless steel large-diameter valves, and slurry valves under strict compliance with ISO 9001 standards.
