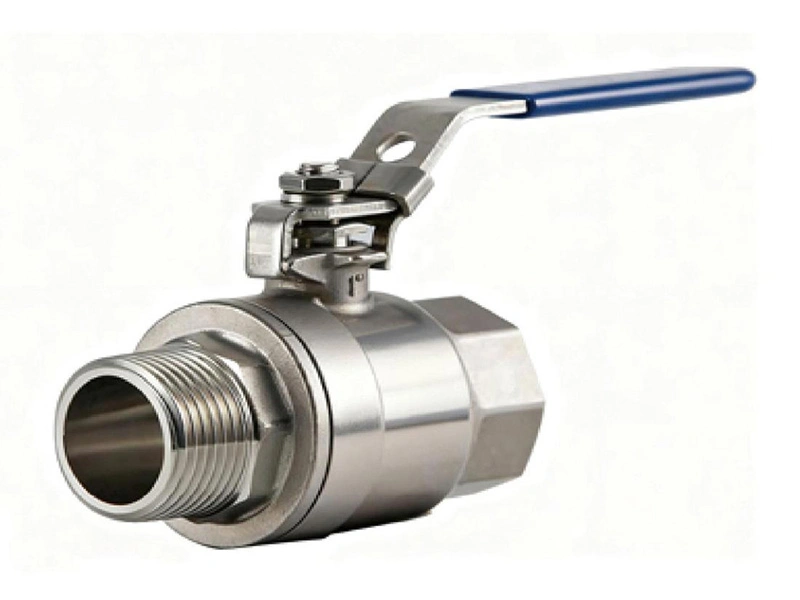

Model: V-2W
2-PC M/F Threaded Ball Valve (Internal/External Thread Valve)
- Nominal Diameter: 1/4"-2"
- Thread Standard: ANSI B2.1 BS 21, DIN 259/2999, JIS 130202/130203
- Materials: 316, CF8M, 1.4408, WCB, 304, CF8, etc.
- Pressure Rating: 1000 PSI WOG
- Inspection & Testing: API 598
- Surface Treatment: Pickling, Passivation, Polishing (or as per customer request)
- Operating Temperature: ≤ 120°C
- Suitable Media: Water, Steam, Oil, Gas, Acids, Alkalis, etc.
Size (mm)
| NPS | Φd | L | LO | H |
| 1/4" | 10.8 | 56.5 | 103 | 43.5 |
| 3/8" | 11.6 | 58.2 | 103 | 43.5 |
| 1/2" | 15 | 69 | 103 | 49 |
| 3/4" | 20 | 77.7 | 126 | 59.4 |
| 1" | 25 | 90.5 | 126 | 63 |
| 1-1/4" | 32 | 105.5 | 154 | 80 |
| 1-1/2" | 38 | 114.2 | 154 | 84 |
| 2" | 50 | 139.5 | 192 | 94 |

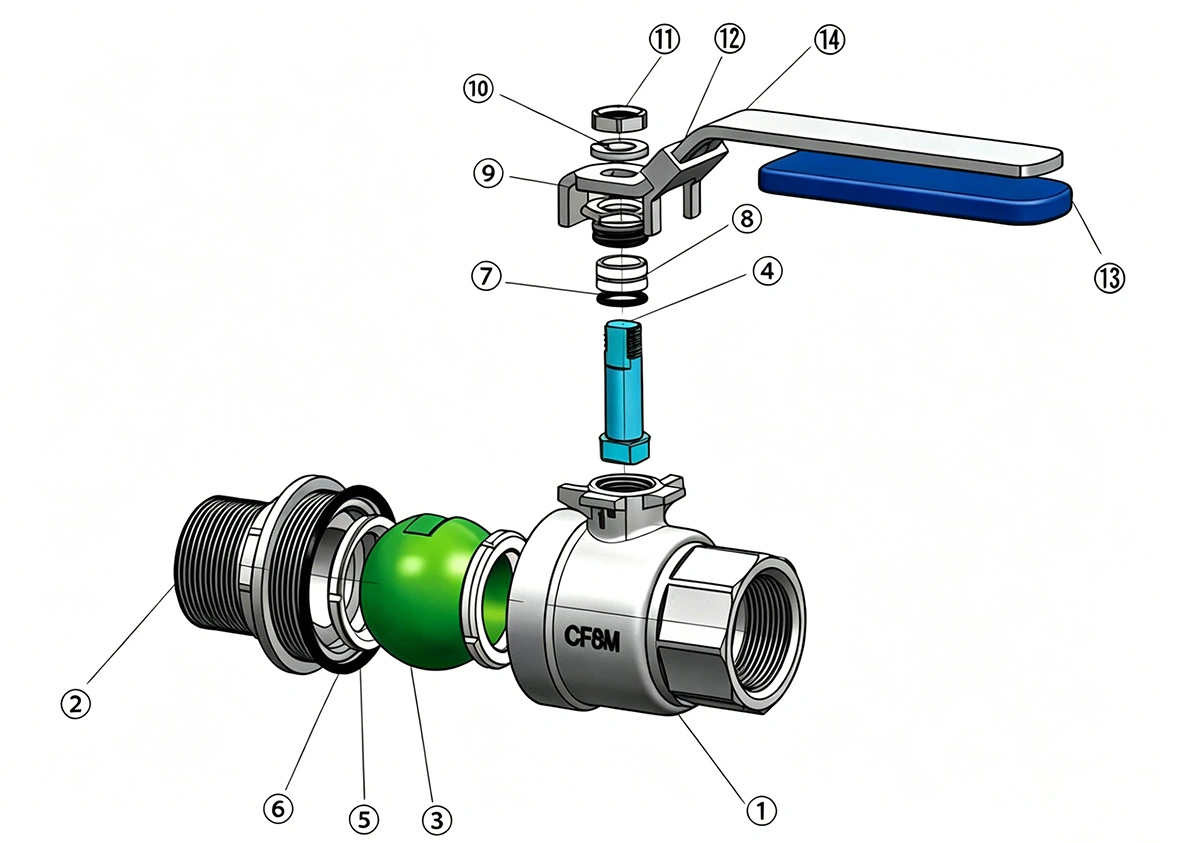

Valve Parts
| No. | Drawing No. | Name | Material | QTY |
| 1 | V2W-0001 | Body | CF8M | 1 |
| 2 | V2W-0002 | Cap | CF8M | 1 |
| 3 | V2W-0003 | Ball | 316 | 1 |
| 4 | V2W-0004 | Stem | 316 | 1 |
| 5 | V2W-0005 | Seat | PTFE+3%GF | 2 |
| 6 | V2W-0006 | Gasket | PTFE | 1 |
| 7 | V2W-0007 | Thrust washer | PTFE | 1 |
| 8 | V2W-0008 | Stem packing | PTFE | 2 |
| 9 | V2W-0009 | Gland | 304 | 1 |
| 10 | V2W-0010 | Spring washer | 304 | 1 |
| 11 | V2W-0011 | Nut | 304 | 1 |
| 12 | V2W-0012 | Locker | 304 | 1 |
| 13 | V2W-0013 | Handle sleeve | Rubber | 1 |
| 14 | V2W-0014 | Handle | 304 | 1 |
