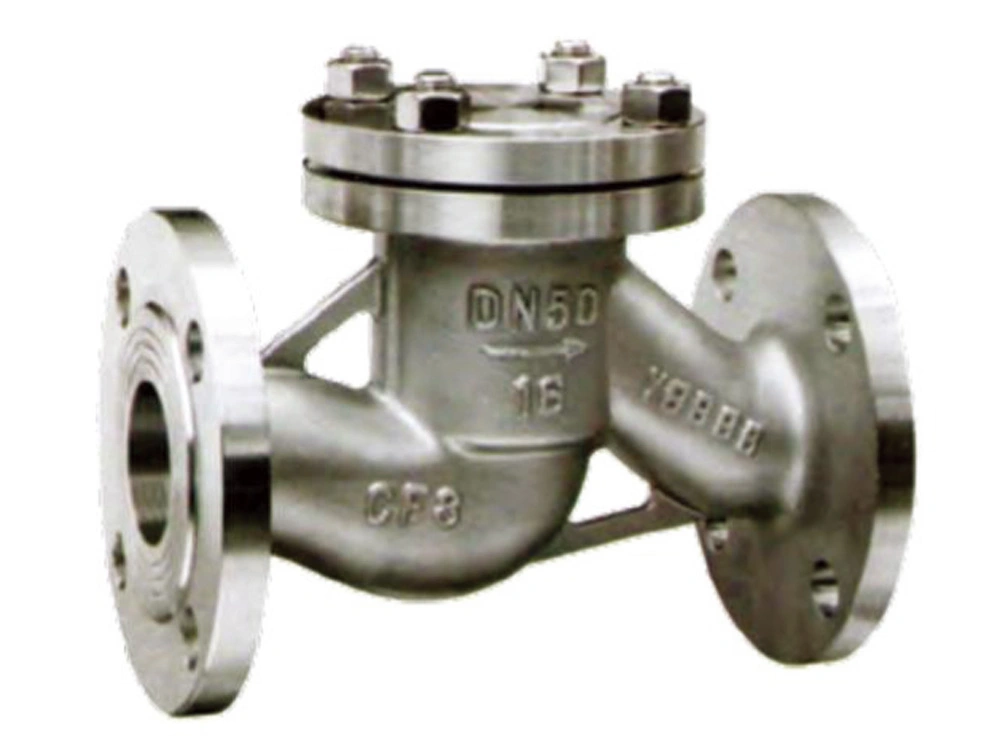

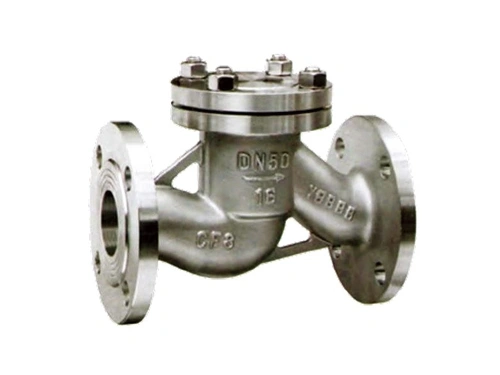

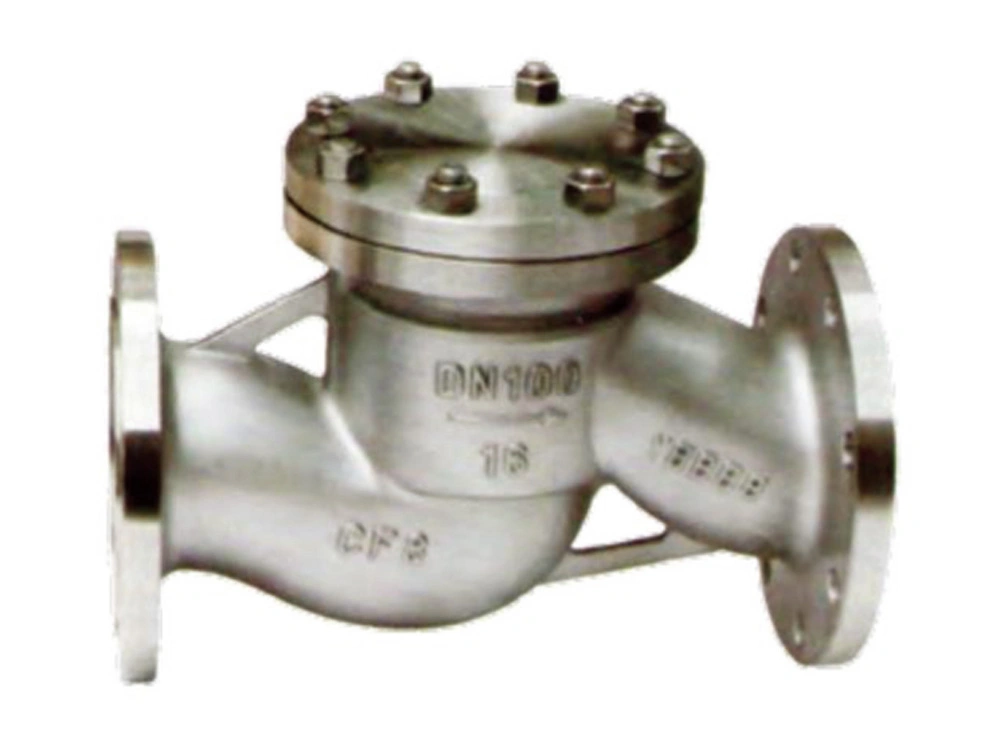

Lift Check Valve(Cast Steel Non-Return Valve)
- Nominal Diameter: DN15-DN200
- Materials: 316, CF8M, 1.4408, WCB, 304, CF8, etc.
- Design & Manufacture: GB/T 12236
- Face-to-Face: GB/T 12221
- Flange End: JB/T79
- Inspection & Testing: JB/T9092
- Operating Temperature: ≤ 120°C
- Suitable Media: Water, Steam, Oil, Gas, Acids, Alkalis, etc.
Test Pressure
| Test Item | Shell Test | Seal Test | Air Seal Test | |
| Medium | Water | Air | ||
| Nominal Pressure (MPa) | 1.6 | 2.4 | 1.8 | 0.6 |
| 2.5 | 3.8 | 2.8 | ||
| 4.0 | 6.0 | 4.4 | ||
| 6.4 | 9.6 | 7.0 | ||

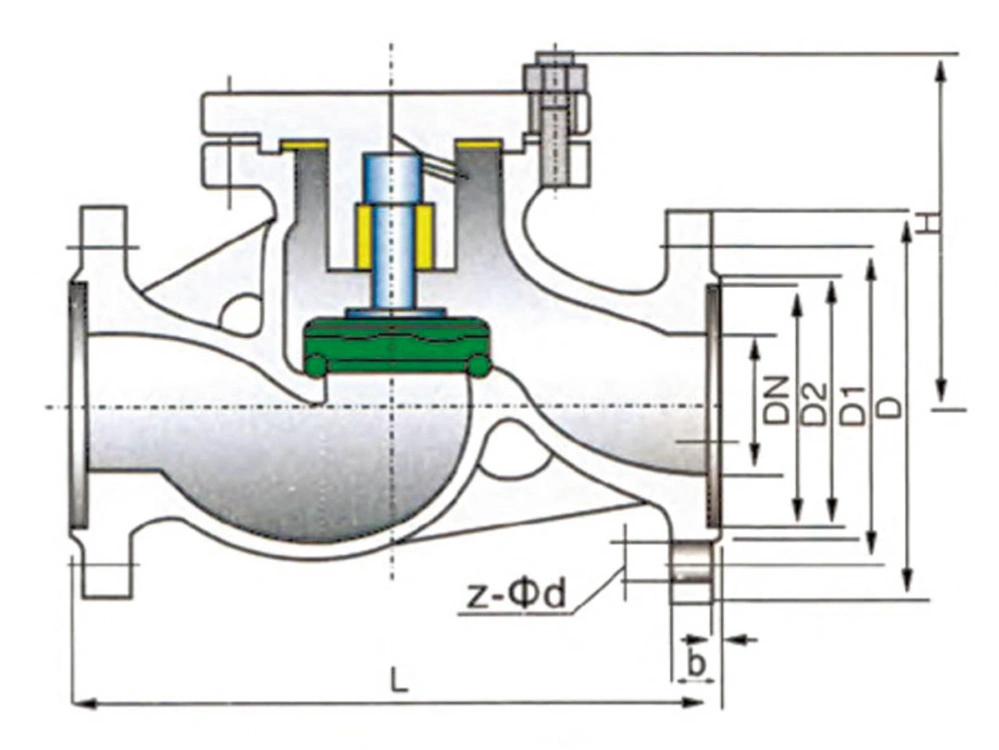

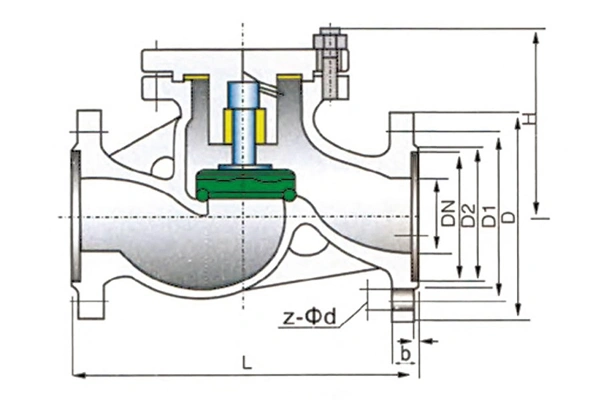

Dimensions (mm)
| DN | L | D | D1 | D2 | H | b | z-Ød |
| H41W-16P(R) | |||||||
| 15 | 130 | 95 | 65 | 45 | 77 | 14 | 4-Ø14 |
| 20 | 150 | 105 | 75 | 55 | 77 | 14 | 4-Ø14 |
| 25 | 160 | 115 | 85 | 65 | 80 | 16 | 4-Ø14 |
| 32 | 180 | 135 | 100 | 78 | 85 | 16 | 4-Ø18 |
| 40 | 200 | 145 | 110 | 85 | 95 | 16 | 4-Ø18 |
| 50 | 230 | 160 | 125 | 100 | 105 | 16 | 4-Ø18 |
| 65 | 290 | 180 | 145 | 120 | 120 | 18 | 4-Ø18 |
| 80 | 310 | 195 | 160 | 135 | 130 | 20 | 8-Ø18 |
| 100 | 350 | 215 | 180 | 155 | 140 | 20 | 8-Ø18 |
| 125 | 400 | 245 | 210 | 185 | 155 | 22 | 8-Ø18 |
| 150 | 480 | 280 | 240 | 210 | 180 | 24 | 8-Ø23 |
| 200 | 600 | 335 | 295 | 265 | 215 | 26 | 12-Ø23 |
| H41W-25P(R) | |||||||
| 40 | 200 | 145 | 110 | 85 | 95 | 18 | 4-Ø18 |
| 50 | 230 | 160 | 125 | 100 | 105 | 20 | 4-Ø18 |
| 65 | 290 | 180 | 145 | 120 | 120 | 22 | 8-Ø18 |
| 80 | 310 | 195 | 160 | 135 | 130 | 22 | 8-Ø18 |
| 100 | 350 | 230 | 190 | 160 | 140 | 24 | 8-Ø23 |
| 125 | 400 | 270 | 220 | 188 | 155 | 28 | 8-Ø25 |
| 150 | 480 | 300 | 250 | 218 | 180 | 30 | 8-Ø25 |
| 200 | 600 | 360 | 310 | 278 | 215 | 34 | 12-Ø25 |
| 250 | 730 | 425 | 370 | 332 | 270 | 36 | 12-Ø30 |
| 300 | 850 | 485 | 430 | 390 | 300 | 40 | 12-Ø30 |
Valve Parts
| Component | Material | |||
| Body/ Bonnet | CF8 | CF8M | CF3M | WCB |
| Wedge | CF8 | CF8M | CF3M | WCB |
| Gasket | PTFE/ Graphite | |||
| Bolt | Stainless Steel | 35CrMoA | ||
| Nut | Stainless Stee | 45, 35CrMoA | ||
