Model: QP

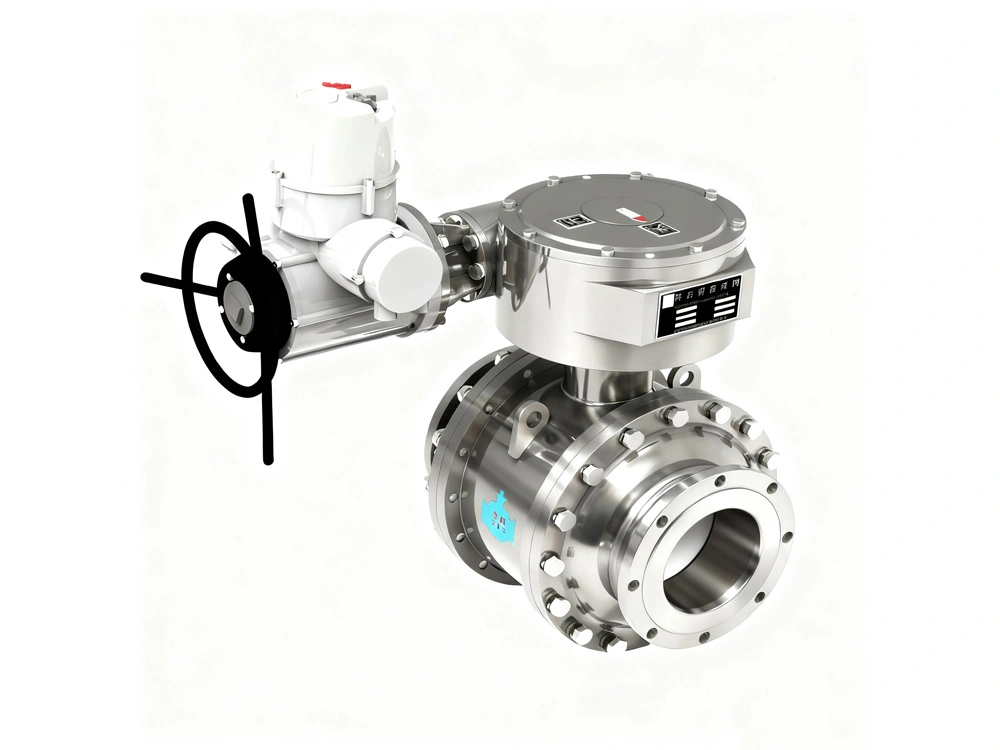

Large-Bore 2-Way Ball Valve (80-800mm Stainless Steel Valve)
- Nominal Diameter: 80～800 mm
- Pressure Rating: 1.0～20.0 MPa
- Flange End: GB/T 9124, ANSI B16.5
- Suitable Media: Water, Steam, Oil, Slurry, Corrosive & Food-Grade Media, etc.
- Operating Temperature: -40 to 120 ℃
- Method of Operation: Manual, Electric, Pneumatic, Hydraulic
- Inspection & Testing: GB/T 13927, API 598
- Surface Treatment: Pickling, Passivation, Polishing (or as per customer request)
Materials
| Body/Bonnet | 304, 304L, 316, 316L |
| Ball | 1Cr18Ni9Ti |
| Stem | 304, 304L |
| Gasket | PTMEG-based Elastomer or FKM |
Applications
Large-bore 2-way stainless steel ball valves handle high flow, high pressure, and corrosive fluids in pipelines. They are widely used in petrochemical, coal chemical, energy, municipal water, environmental, metallurgy, paper, marine, food, pharmaceutical, and new materials industries, with stainless steel material and specific valve design chosen for the conditions of each installation.

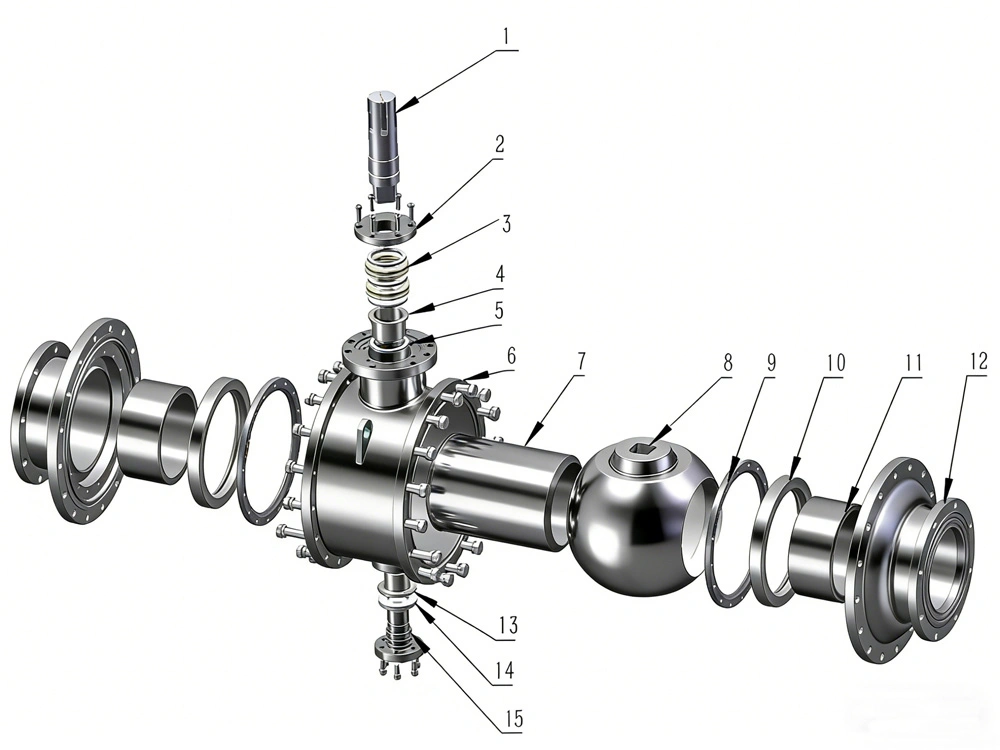

Valve Parts
| No. | Component | Quantity |
| 1 | Upper Stem | 1 |
| 2 | Stem Seal Gland | 1 |
| 3 | Stem Seal | 2 |
| 4 | Upper Stem Bushing | 1 |
| 5 | Upper Thrust Washer | 1 |
| 6 | Body | 1 |
| 7 | Ball Bushing | 1 |
| 8 | Ball | 1 |
| 9 | Retaining Ring | 2 |
| 10 | Gasket | 2 |
| 11 | Bonnet Bushing | 2 |
| 12 | Bonnet | 2 |
| 13 | Lower Stem Bushing | 1 |
| 14 | Lower Thrust Washer | 1 |
| 15 | Lower Stem | 1 |

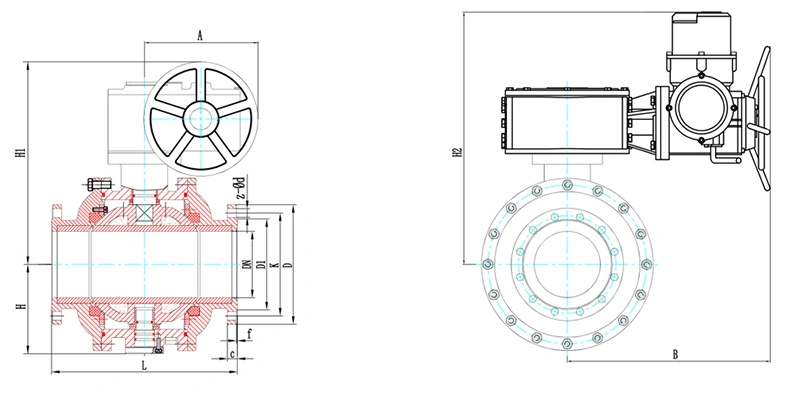

Dimensions

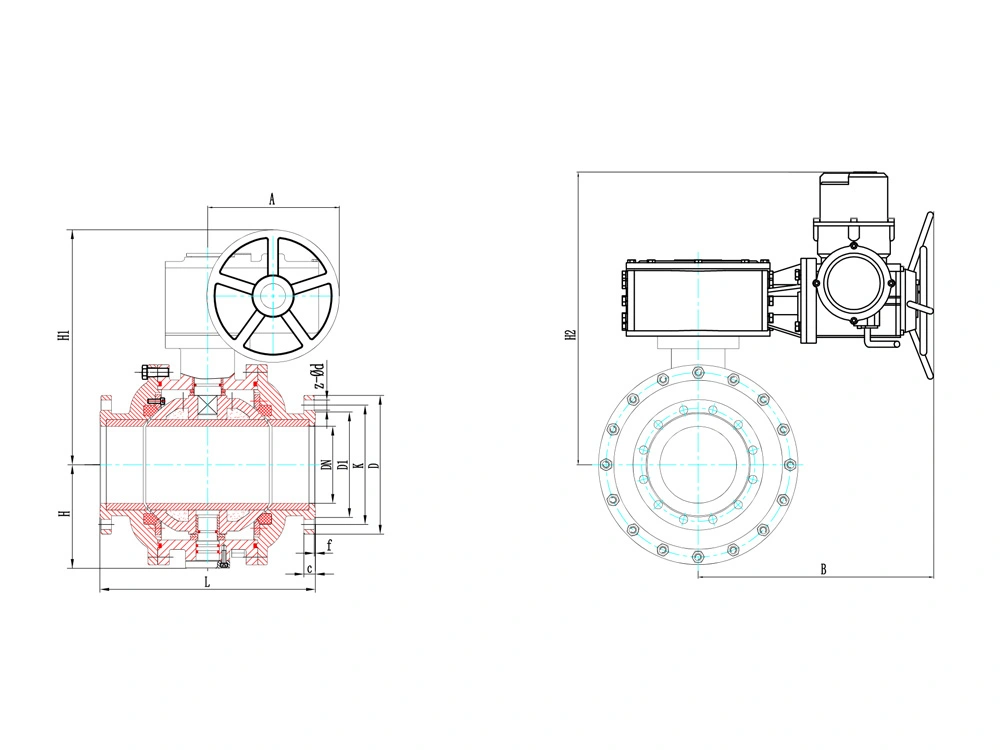

Note: Electric and manual ball valves share almost all the same measurements, except for H1, H2, A, and B, which vary depending on the type of operation.
PN1.0MPa
| Size | L | H | H1 | H2 | A | B | D | K | D1 | c | f | Z-Ød | ||
| L | S | |||||||||||||
| DN | NPS | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 100 | 4" | 370 | 370 | 150 | 536 | 502 | 300 | 478 | 220 | 180 | 156 | 21 | 3 | 8-Ø18 |
| 125 | 5" | 390 | 380 | 150 | 536 | 502 | 300 | 478 | 250 | 210 | 184 | 21 | 3 | 8-Ø18 |
| 150 | 6" | 440 | 440 | 165 | 551 | 517 | 300 | 478 | 285 | 240 | 211 | 21 | 3 | 8-Ø22 |
| 175 | 7" | 500 | 460 | 180 | 658 | 532 | 413 | 478 | 315 | 270 | 240 | 21 | 3 | 8-Ø22 |
| 200 | 8" | 540 | 490 | 225 | 698 | 670 | 413 | 616 | 340 | 295 | 266 | 25 | 3 | 8-Ø22 |
| 225 | 9" | 560 | 526 | 243 | 716 | 688 | 413 | 616 | 370 | 325 | 295 | 26 | 3 | 8-Ø22 |
| 250 | 10" | 610 | 516 | 243 | 729 | 688 | 413 | 616 | 395 | 350 | 319 | 26 | 3 | 12-Ø22 |
| 300 | 12" | 620 | 520 | 255 | 824 | 700 | 564 | 616 | 445 | 400 | 370 | 29 | 4 | 12-Ø22 |
| 350 | 14" | 690 | 600 | 285 | 854 | 759 | 564 | 685 | 505 | 460 | 429 | 29 | 4 | 16-Ø22 |
| 400 | 16" | 764 | 670 | 335 | 1009 | 811 | 698 | 685 | 565 | 515 | 480 | 32 | 4 | 16-Ø26 |
| 450 | 18" | 818 | 740 | 375 | 1049 | 851 | 698 | 685 | 615 | 565 | 530 | 34 | 4 | 20-Ø26 |
| 500 | 20" | 920 | 870 | 433 | 1176 | 964 | 853 | 855 | 670 | 620 | 582 | 34 | 4 | 20-Ø26 |
| 600 | 24" | 950 | 950 | 480 | 1216 | 1004 | 853 | 855 | 780 | 725 | 682 | 37 | 5 | 20-Ø30 |
| 700 | 28" | 1280 | 1280 | 628 | 1401 | 1712 | 1150 | 1625 | 895 | 840 | 794 | 40 | 5 | 24-Ø30 |
PN1.6MPa
| Size | L | H | H1 | H2 | A | B | D | K | D1 | c | f | Z-Ød | ||
| L | S | |||||||||||||
| DN | NPS | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 100 | 4" | 370 | 370 | 150 | 536 | 502 | 300 | 478 | 220 | 180 | 156 | 21 | 3 | 8-Ø18 |
| 125 | 5" | 390 | 380 | 150 | 536 | 502 | 300 | 478 | 250 | 210 | 184 | 21 | 3 | 8-Ø18 |
| 150 | 6" | 440 | 440 | 165 | 551 | 517 | 300 | 478 | 285 | 240 | 211 | 21 | 3 | 8-Ø22 |
| 175 | 7" | 500 | 460 | 180 | 658 | 532 | 413 | 478 | 315 | 270 | 240 | 21 | 3 | 8-Ø22 |
| 200 | 8" | 540 | 490 | 225 | 698 | 670 | 413 | 616 | 340 | 295 | 266 | 25 | 3 | 12-Ø22 |
| 225 | 9" | 560 | 526 | 243 | 716 | 688 | 413 | 616 | 370 | 325 | 295 | 26 | 3 | 12-Ø22 |
| 250 | 10" | 610 | 516 | 243 | 729 | 688 | 413 | 616 | 405 | 355 | 319 | 26 | 3 | 12-Ø26 |
| 300 | 12" | 620 | 520 | 255 | 824 | 700 | 564 | 616 | 460 | 410 | 370 | 29 | 4 | 12-Ø26 |
| 350 | 14" | 690 | 600 | 285 | 854 | 759 | 564 | 685 | 520 | 470 | 429 | 29 | 4 | 16-Ø26 |
| 400 | 16" | 764 | 670 | 335 | 1009 | 811 | 698 | 685 | 580 | 525 | 480 | 32 | 4 | 16-Ø30 |
| 450 | 18" | 818 | 740 | 375 | 1049 | 851 | 698 | 685 | 640 | 585 | 548 | 34 | 4 | 20-Ø30 |
| 500 | 20" | 920 | 870 | 433 | 1176 | 964 | 853 | 855 | 715 | 650 | 609 | 34 | 4 | 20-Ø33 |
| 600 | 24" | 950 | 950 | 480 | 1216 | 1004 | 853 | 855 | 840 | 770 | 720 | 47 | 5 | 20-Ø36 |
| 700 | 28" | 1280 | 1280 | 628 | 1401 | 1712 | 1150 | 1625 | 910 | 840 | 794 | 50 | 5 | 24-Ø36 |
PN2.5MPa
| Size | L | H | H1 | H2 | A | B | D | K | D1 | c | f | Z-Ød | ||
| L | S | |||||||||||||
| DN | NPS | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 100 | 4" | 370 | 370 | 150 | 536 | 502 | 300 | 478 | 235 | 190 | 156 | 22 | 3 | 8-Ø22 |
| 125 | 5" | 390 | 380 | 150 | 536 | 502 | 300 | 478 | 270 | 220 | 184 | 22 | 3 | 8-Ø26 |
| 150 | 6" | 440 | 440 | 165 | 551 | 517 | 300 | 478 | 300 | 250 | 211 | 24 | 3 | 8-Ø26 |
| 175 | 7" | 500 | 460 | 180 | 658 | 532 | 413 | 478 | 330 | 280 | 248 | 24 | 3 | 12-Ø26 |
| 200 | 8" | 540 | 490 | 225 | 698 | 670 | 413 | 616 | 360 | 310 | 274 | 26 | 3 | 12-Ø26 |
| 225 | 9" | 560 | 526 | 243 | 716 | 688 | 413 | 616 | 395 | 340 | 302 | 28 | 3 | 12-Ø30 |
| 250 | 10" | 610 | 516 | 243 | 729 | 688 | 413 | 616 | 425 | 370 | 330 | 28 | 3 | 12-Ø30 |
| 300 | 12" | 620 | 520 | 255 | 824 | 700 | 564 | 616 | 485 | 430 | 389 | 32 | 4 | 16-Ø30 |
| 350 | 14" | 690 | 600 | 285 | 854 | 759 | 564 | 685 | 555 | 490 | 448 | 35 | 4 | 16-Ø33 |
| 400 | 16" | 764 | 670 | 335 | 1009 | 811 | 698 | 685 | 620 | 550 | 503 | 38 | 4 | 16-Ø36 |
| 450 | 18" | 818 | 740 | 375 | 1049 | 851 | 698 | 685 | 670 | 600 | 548 | 38 | 4 | 20-Ø36 |
| 500 | 20" | 920 | 870 | 433 | 1176 | 964 | 853 | 855 | 730 | 660 | 609 | 42 | 4 | 20-Ø36 |
| 600 | 24" | 950 | 950 | 480 | 1216 | 1004 | 853 | 855 | 845 | 770 | 720 | 52 | 5 | 20-Ø39 |
| 700 | 28" | 1280 | 1280 | 628 | 1401 | 1712 | 1150 | 1625 | 960 | 875 | 820 | 60 | 5 | 24-Ø42 |
PN4.0MPa
| Size | L | H | H1 | H2 | A | B | D | K | D1 | c | f | Z-Ød | ||
| L | S | |||||||||||||
| DN | NPS | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 100 | 4" | 386 | 150 | 536 | 502 | 300 | 478 | 235 | 190 | 156 | 24 | 3 | 8-Ø22 | |
| 125 | 5" | 390 | 150 | 536 | 502 | 300 | 478 | 270 | 220 | 184 | 26 | 3 | 8-Ø26 | |
| 150 | 6" | 470 | 165 | 551 | 517 | 300 | 478 | 300 | 250 | 211 | 28 | 3 | 8-Ø26 | |
| 175 | 7" | 500 | 470 | 180 | 658 | 532 | 413 | 478 | 350 | 295 | 258 | 28 | 3 | 12-Ø30 |
| 200 | 8" | 540 | 520 | 225 | 698 | 670 | 413 | 616 | 375 | 320 | 284 | 33 | 3 | 12-Ø30 |
| 225 | 9" | 560 | 542 | 243 | 716 | 688 | 413 | 616 | 420 | 355 | 315 | 33 | 3 | 12-Ø33 |
| 250 | 10" | 610 | 546 | 243 | 729 | 688 | 413 | 616 | 450 | 385 | 345 | 33 | 3 | 12-Ø33 |
| 300 | 12" | 620 | 586 | 255 | 824 | 700 | 564 | 685 | 515 | 450 | 409 | 39 | 4 | 16-Ø33 |
| 350 | 14" | 690 | 650 | 285 | 854 | 759 | 564 | 685 | 580 | 510 | 465 | 39 | 4 | 16-Ø36 |
| 500 | 20" | 764 | 710 | 335 | 1009 | 811 | 698 | 685 | 755 | 670 | 615 | 50 | 4 | 20-Ø42 |
| 600 | 24" | 980 | 538 | 1302 | 1115 | 987 | 993 | 890 | 795 | 735 | 65 | 5 | 20-Ø48 | |
PN6.3MPa
| Size | L | H | H1 | H2 | A | B | D | K | D1 | c | f | Z-Ød | ||
| L | S | |||||||||||||
| DN | NPS | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 100 | 4" | 386 | 386 | 150 | 536 | 502 | 300 | 478 | 250 | 200 | 168 | 28 | 3 | 8-Ø26 |
| 125 | 5" | 390 | 390 | 150 | 536 | 502 | 300 | 478 | 295 | 240 | 202 | 28 | 3 | 8-Ø30 |
| 150 | 6" | 470 | 470 | 165 | 551 | 517 | 300 | 478 | 345 | 280 | 240 | 30 | 3 | 8-Ø33 |
| 175 | 7" | 500 | 470 | 180 | 658 | 532 | 413 | 478 | 375 | 310 | 270 | 30 | 3 | 12-Ø33 |
| 200 | 8" | 540 | 520 | 225 | 698 | 670 | 413 | 616 | 415 | 345 | 300 | 35 | 3 | 12-Ø36 |
| 225 | 9" | 560 | 542 | 243 | 716 | 688 | 413 | 616 | 440 | 370 | 325 | 35 | 3 | 12-Ø36 |
| 250 | 10" | 610 | 546 | 243 | 729 | 688 | 413 | 616 | 470 | 400 | 352 | 38 | 3 | 12-Ø36 |
| 300 | 12" | 620 | 586 | 255 | 824 | 700 | 564 | 685 | 530 | 460 | 412 | 42 | 4 | 16-Ø36 |
| 350 | 14" | 690 | 650 | 285 | 854 | 759 | 564 | 685 | 600 | 525 | 475 | 46 | 4 | 16-Ø39 |
PN10.0MPa
| Size | L | H | H1 | H2 | A | B | D | K | D1 | Z-Ød | |
| DN | NPS | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 100 | 4" | 400 | 173 | 651 | 617 | 381 | 539 | 265 | 210 | 156 | 8-Ø30 |
| 125 | 5" | 450 | 193 | 671 | 637 | 381 | 539 | 315 | 250 | 184 | 8-Ø33 |
| 150 | 6" | 500 | 218 | 691 | 667 | 381 | 539 | 355 | 290 | 211 | 12-Ø33 |
| 200 | 8" | 540 | 243 | 716 | 745 | 381 | 685 | 430 | 360 | 284 | 12-Ø36 |
| 250 | 10" | 610 | 318 | 904 | 809 | 564 | 685 | 505 | 430 | 345 | 12-Ø39 |
| 300 | 12" | 690 | 343 | 974 | 913 | 564 | 855 | 585 | 500 | 409 | 16-Ø42 |
| 350 | 14" | 760 | 393 | 1034 | 933 | 644 | 855 | 655 | 560 | 465 | 16-Ø48 |
Notes
- The valve specifications shown in the tables above are for reference only.
- Product specifications and technical data may change due to product improvements or updates, please contact us for the latest information.
- Valves can be customized according to customer requirements.
