Reversible Hammer Mill
Request a Quote

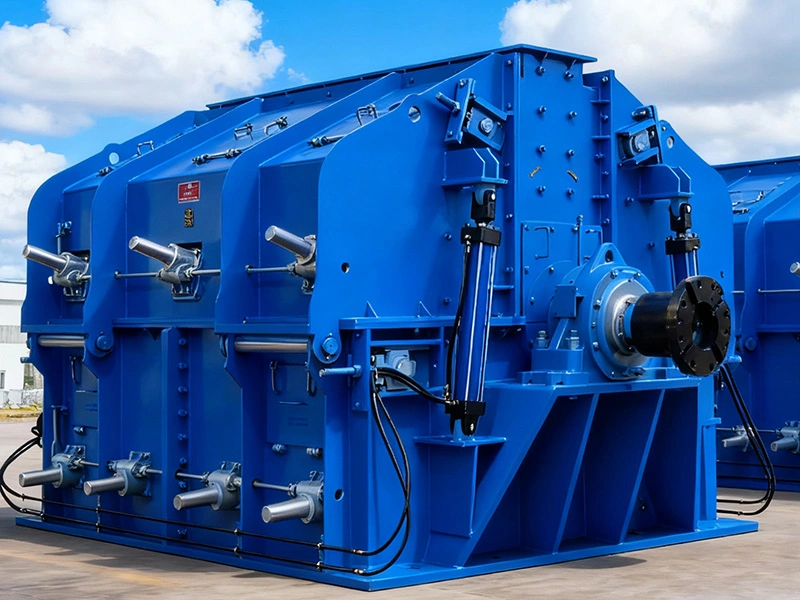

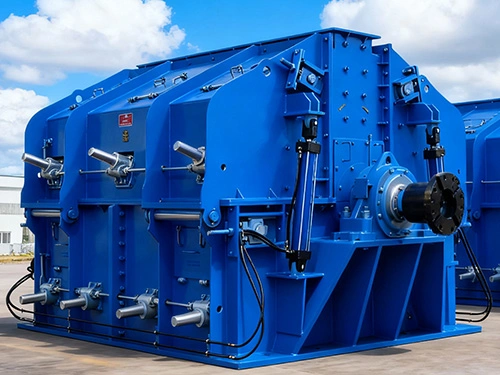

Reversible Hammer Mill

The reversible hammer mill is designed for fine crushing applications in circulating fluidized bed (CFB) boiler systems and coal gangue backfill projects. The hammer mills are specially useful where stable particle size control, fuel adaptability, and continuous operation are critical to overall system performance.

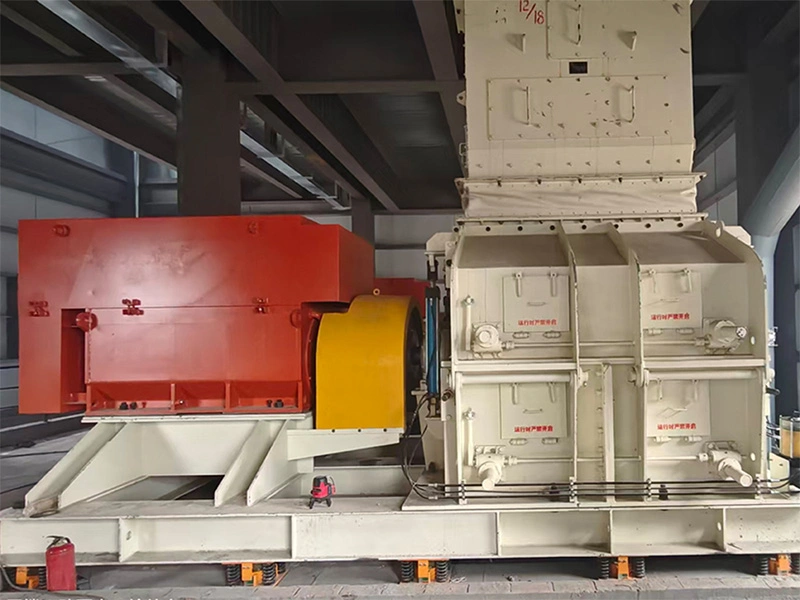

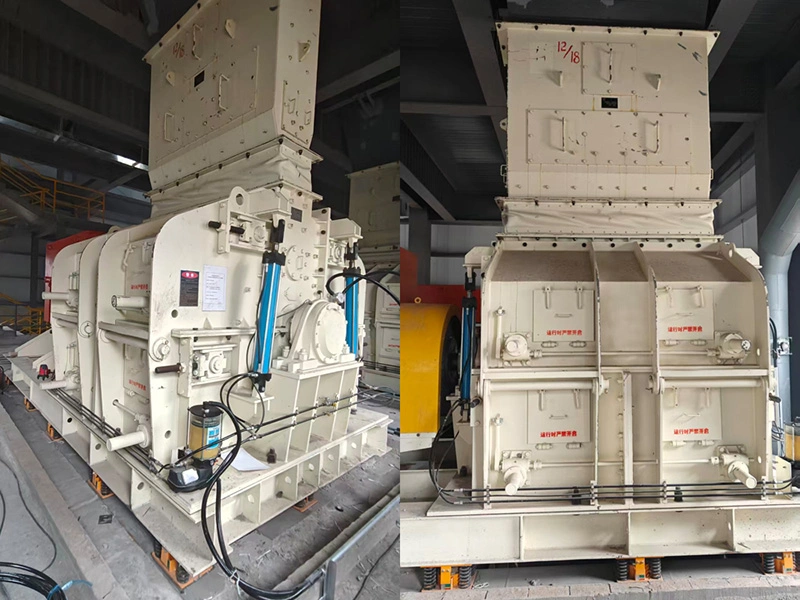

Backed by more than 20 years of application and service experience, SDPLDL has continuously optimized the structure and operating performance of its reversible hammer mill to better handle changing coal qualities and demanding working conditions. Today, the hammer mill is widely used in CFB boiler systems, coal gangue processing, and fuel preparation projects. It has become a preferred solution for many system upgrade and capacity improvement applications.

Flexible adaptation for changing fuel conditions

Coal type and fuel quality can change frequently in power plants and coal processing systems. To improve adaptability, the reversible hammer mill is designed with a more flexible crushing structure, allowing to handle a wider range of coal types and mixed fuel materials more efficiently. It extends hammer life, increase production efficiency, and reduce maintenance frequency and servicing costs.

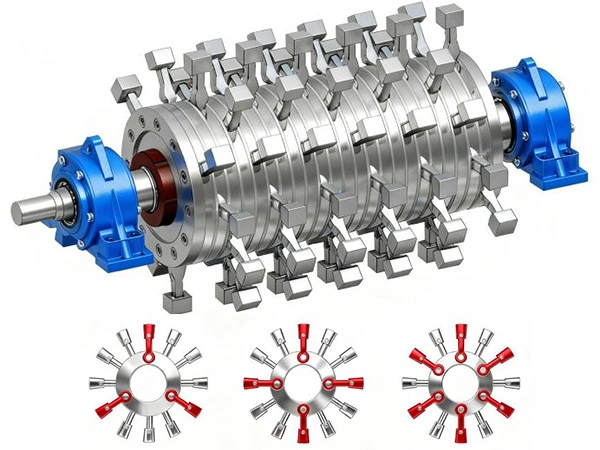

Flexible hammer configuration Flexible hammer configuration

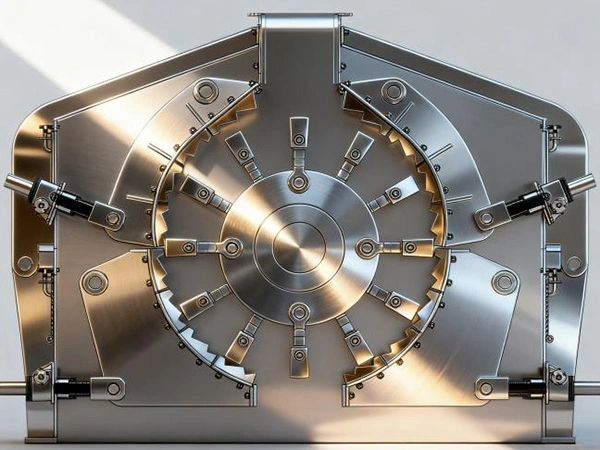

Multi-stage crushing gap adjustment Multi-stage crushing gap adjustment
Main Components
Main Components

Crushing principle and adjustable hammer-to-breaker plate clearance design

Main Components

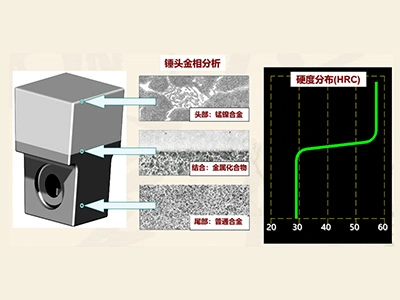

Bi-metal hammer heads

Main Components

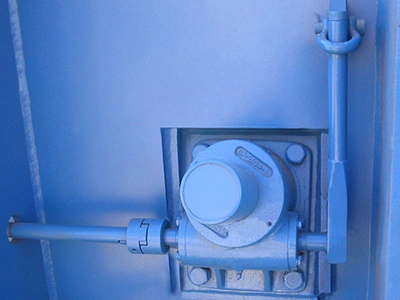

Synchronous adjustment mechanism, worm gear design with a 50:1 reduction ratio allows easier and safer adjustment with smaller feed movement requirements

Main Components

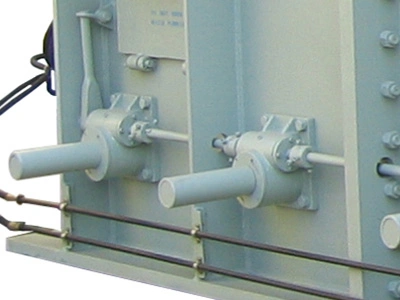

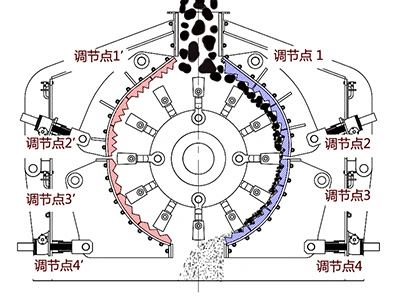

Four adjustment points operate simultaneously to maintain a uniform clearance between the hammer heads and breaker plates

Main Components

Full-opening maintenance door for easy access

Main Components

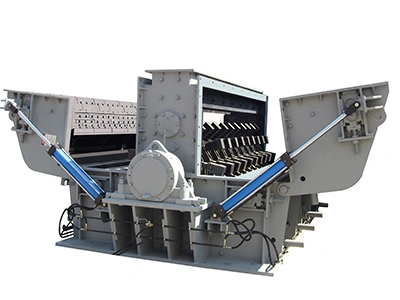

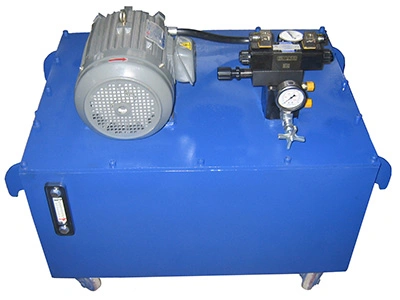

Movable hydraulic opening station

Main Components

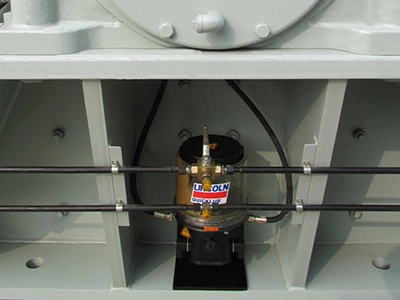

Automatic bearing lubrication system

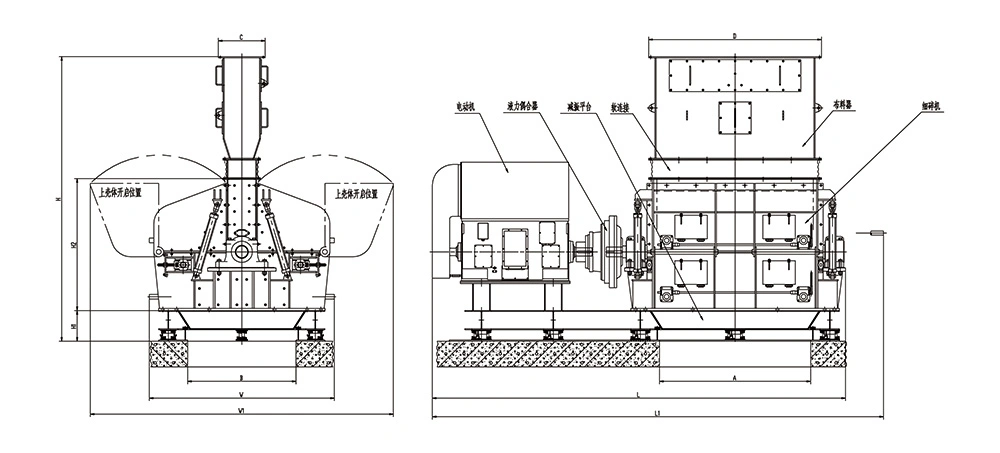

Dimensions
Dimensions

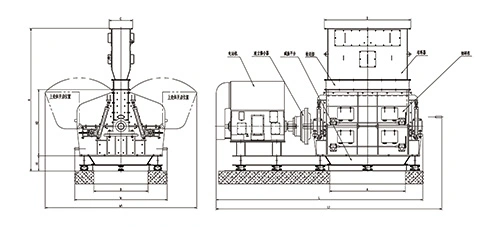

Specifications
Dimensions Capacity A B C D L L1 W W1 H H1 H2 Total Weight
t/h mm mm mm mm mm mm mm mm mm mm mm ton
80-120 1600 1230 730 1524 3993 4570 2685 4590 3580 0 1807 15 (without operating platform)
150-250 1340 1800 730 1776 5242 6274 3016 4724 4197 362 2057 22.6 (with operating platform)
300-350 1714 1660 730 2084 5876 7211 3016 4724 4427 470 2057 29.5 (with operating platform)
400-500 2322 1660 730 2692 6780 8780 3016 4724 4427 470 2057 35.4 (with operating platform)
600-700 2626 1660 730 2996 7718 8880 3016 4724 4482 515 2057 43.6 (with operating platform)
800-1000 2930 1660 730 3300 8094 9194 3016 4724 4482 515 2057 51.5 (with operating platform)

Note: Specifications in this table may vary depending on project requirements and coal characteristics. Data is provided for reference only.
